Clamping Elements Type RCK 15/13/16
Designed for use with standarised ranges of pulleys, sprockets and gears, with Standard General Purpose.

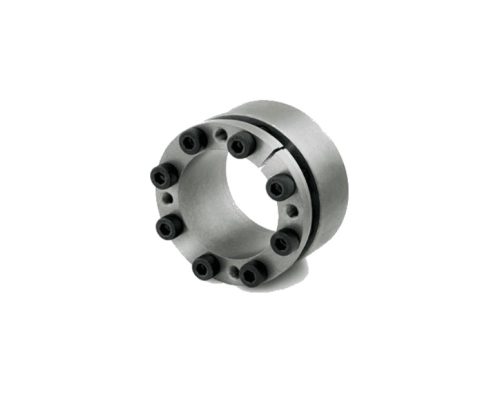

Clamping Elements Type RCK 70/71: High Torque Units
These units are designed to give optimum concentricity both radically and axially and are self centering, high torque and self locking.
Shaft Clamping Elements Type RCK 80
These units are designed to fit into small diameter hubs, being particularly suited to light duty, light torque application. Avaliable for shaft diameters 6 to 130mm.
Also available in stainless steel, see below.

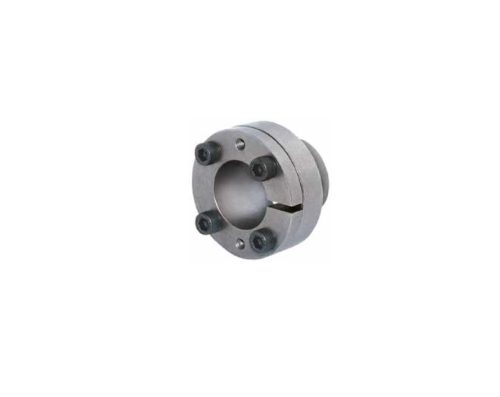

Shaft Clamping Elements Type ACE 81
Shaft Clamping Elements Type RCK 40

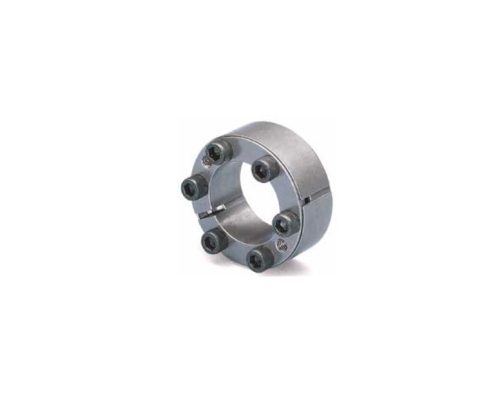

Shaft Clamping Elements Type RCK 45
These clamping elements provide good torque transmission from a compact, low cost assembly. These units must always be installed inside the hub, and will then provide a reasonable level of concentricity. A small axial movement of the hub occurs during clamping.

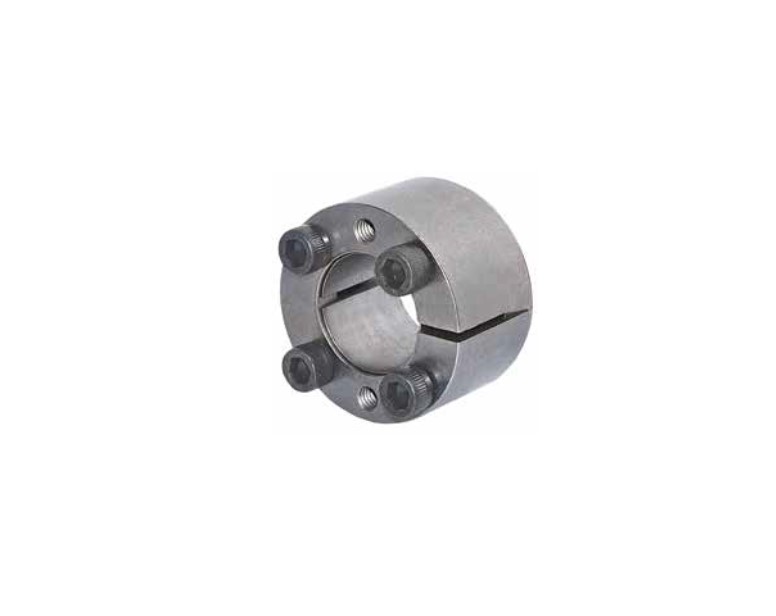

Shaft Clamping Elements Type RCK 61
Available for shaft diameters from 6 mm, these clamping elements are designed for small low to medium torque applications, providing concentric connection of components to shafting.
Also available in stainless steel, see below.
Clamping Elements Type RCK 50
These shaft clamping elements consist of just two conical rings which require the minimum of radial space, so providing compact assemblies, and enabling use within small hub diameters.
Provide low torque but the capacity can be increased by combining units (max 4). These units do not self-centre so require external means of centring the hub.

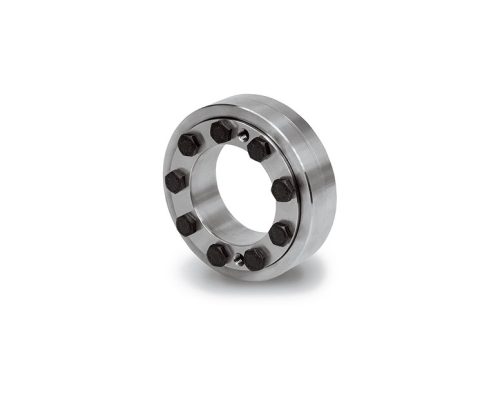

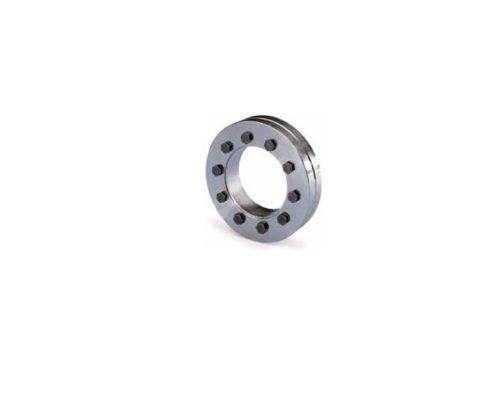

Clamping Elements Type RCK 19 & 20
Types RCK 19 & RCK 20 are normally referred to as Clamping Discs, used to clamp externally onto thin walled hubs to lock them to the shaft. The design permits the use of large diameter shafts with small hub sizes, and is popular for connection of large sprocket and pulleys. The design provides for optimum concentricity, with medium-to-high torque transmission.
Clamping Elements Type RCK 25
RCK 25 clamping elements do not require a Torque wrench, just tighten the screws in a clockwise sequence until the front faces of the flange and outer ring are aligned. The design provides for optimum concentricity, with medium-to-high torque transmission.
RCK 25 clamping elements are the perfect solution to the problem by replacing torque setting that requires precision, with position setting that only needs the alignment of two surfaces. Moreover the interchangeability with the traditional types is guaranteed.
Clamping Elements Type RCK 95
Similar in design to the Clamping Discs, type RCK 19, but with the discs spaced further apart to enable connection to more than one shaft, enabling use as a rigid shaft coupling. These units can be used to connect two identical diameter shafts which are perfectly aligned, or to produce a longer shaft which is only mounted in two bearings. Zero backlash shaft connection with advantage of fast assembly and disassembly.
Not self centring, medium-to-high torque

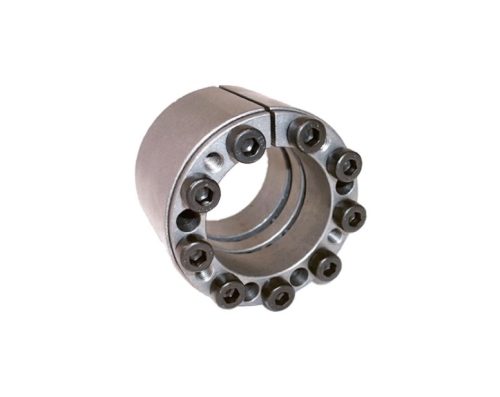

Clamping Elements Type RCK 10/11/12
Compact and very compact small versatile units. These units are offered in three series. A light duty series RCK 10, a normal duty series RCK 11, and a Heavy duty series RCK 12 for maximum torque applications.
Self centring and self lockin.
Clamping Elements Type CCE54 & CCE55
These clamping elements use a single lock nut to apply the clamping
pressure, thereby enabling quick assembly and removal.

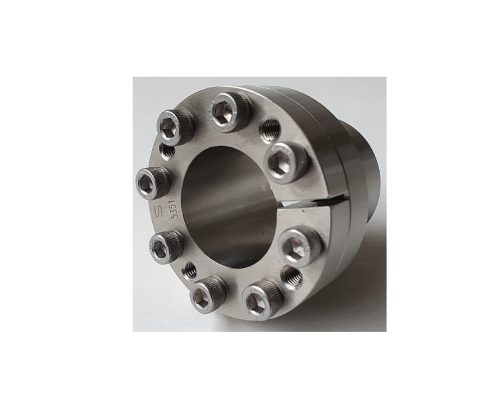

Stainless Steel Shaft Clamping Elements
Cross+Morse offers a new range of Stainless Steel Shaft Clamping Elements available in types RCK40, RCK 61 and RCK80
