About our Roller Chain Couplings and Delrin® Chain Couplings
Standard Roller chain couplings are suitable for low to medium speeds. 2,000 rpm without cover. (5,000 rpm with cover.) High torque capacity Delrin® chain couplings are suited for medium to high speed 100-5,000 rpm range and provide moderate misalignment capability.
Roller Chain Couplings LRC Series
Ease of Installation
The LRC Coupling can be quickly installed and aligned. Connected shafts are easily separated by removing the spring clip connecting link and then the chain from the sprockets.
• High Capacity
Obtained through use of hardened tooth sprockets, Precision Roller Chain with hardened rollers, allowing substantial kW Power in a compact size
• Inexpensive
Low initial cost per kW Power transmitted, and long service life are obtained through the use of standard components with hardened working surfaces.
• Minimum Maintenance
When optional spun covers are used lubrication is retained on the hardened working surfaces.
• Flexibility
Good installation practice dictates that coupling be installed with a minimum of misalignment. The LRC Coupling permitsmoderate angular and parallel shaft misalignment.

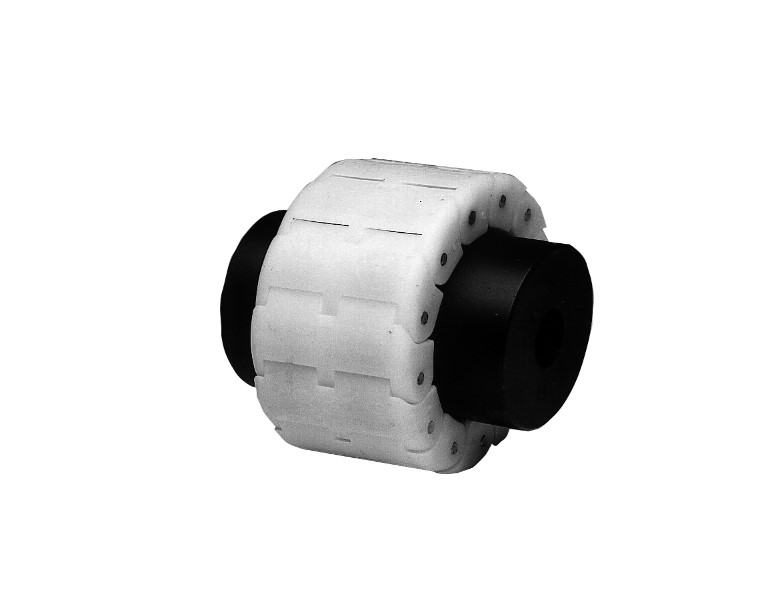

Delrin® Chain Couplings LNC Series
Delrin® Chain Couplings Available in Two Series: N400 Series 1/2 ” pitch .2 through 21kW and N600 Series 3/4 ” pitch 1.1 through 45kW. Both types are available with minimum plain bore, finished bore with standard keyway and setscrew, or TL taper bore.
Delrin® chain couplings feature the following advantages:
Corrosion Resistant: Where corrosion is a problem, Delrin® Couplings are a must. Pollution-Free Couplings: A neat way to keep things clean. Economical: Cost less to install and maintain. No Lubrication: No dirt catching problems with grease. Quiet: Runs quieter than metal couplings. Safe Smooth outer surface of Delrin® Chain.
Delrin® Chain couplings are ideal for environments where corrosion is normally a problem from atmospheric conditions; for food processing, textile and other machinery which avoids the use of oil or grease; for the safety feature of the smooth outer surface without a cover and for centrifugal pumps and steady load applications.
